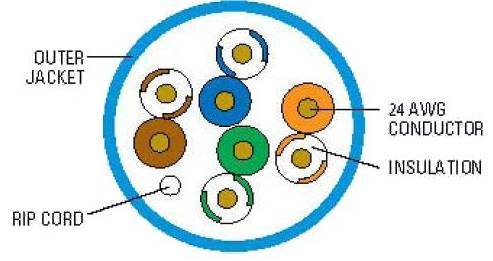

Category 5 cable includes 4 twisted pairs in a single cable jacket. The twists create balanced lines which help preserve a high signal-to-noise ratio despite interference from both external sources and other pairs (crosstalk). Cat 5 is most commonly used for 100 Mbit/s networks, such as 100BASE-TX Ethernet, although IEEE 802.3ab defines standards for 1000BASE-T Gigabit Ethernet over category 5 cable. Each of the four pairs in a Cat 5 cable has differing precise number of twists per meter based on prime numbers to minimize crosstalk between the pairs. On average there are 6 twists per 5 centimeters. The pairs are made from 24 gauge (AWG) copper wires within the cables. Cat 5e meets or exceeds the 100 Mhz band width of the original category 5 spectification with a data rate of up to 1 Gbit/s.

Twisted Pair Data Wire is one of the hundreds of computer networking items you will find at our main catalog site at telephoneparts.com.

  • ETL Listed Type CMR
  • C(ETL) Listed CMG FT4
  • ETL Verified to TIA - 568-C.2, and ISO/IEC 11801
  • ROHS Compliant
  • ATM 155 Mbps
  • Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100Base-T4,
  • 1000 Mbps 1000BASE-T Gigibit Ethernet™ (IEEE 802.3)
  • 16 Mbps Token Ring™ (IEEE 802.5)
Part #: ISW-4P24L5E1KBE

4 pair 24AWG solid copper conductor cable, Category 5E 350Mhz UTP rated CMR, blue, PVC
putup: 1000' box

1+
$109.00
3+
$106.82
6+
$103.55



Top of Page

Part #: ISW-4P24L5E1KGN

4 pair 24AWG solid copper conductor cable, Category 5E 350Mhz UTP rated CMR, green, PVC
putup: 1000' box

1+
$109.00
3+
$106.82
6+
$103.55



Top of Page

Part #: ISW-4P24L5E1KGY

4 pair 24AWG solid copper conductor cable, Category 5E 350Mhz UTP rated CMR, gray, PVC
putup: 1000' box

1+
$109.00
3+
$106.82
6+
$103.55



Top of Page

Part #: ISW-4P24L5E1KWH

4 pair 24AWG solid copper conductor cable, Category 5 Enhanced 350Mhz UTP rated CMR, white, PVC
putup: 1000' box

1+
$109.00
3+
$106.82
6+
$103.55



Top of Page

Part #: M55987

Mohawk 4 pair 24AWG shielded solid copper conductor cable, Category 5E 400Mhz ScTP rated CMR, white, PVC, UL
putup: 1000' reel

Detailed Specs on Mohawk's web site

1+
$155.00
